Heartland Sundance Ultra Lite Travel Trailer

Previous
Next
1 of 40
View Floorplans Request Info
Factory Brochure Print Page
The Sundance Ultra Lite brings you lightweight, easy to manage travel trailers with luxury amenities.

These ultra lightweight travel trailers are the perfect choice for a fuel efficient crossover or lighter duty truck. All these models feature a painted front fiberglass cap, Dexter axles, plus a universal docking center.

Whether you are looking for the ideal couples coach or a travel trailer with a bunk house for your growing family there is a Sundance Ultra Lite travel trailer for you!

  • Sundance Ultra Lite 189 MB

    Sundance Ultra Lite 189 MB Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 189 MB highlights: Murphy Bed Rear ... more about Sundance Ultra Lite 189 MB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 22 ft
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 560 lbs
    Gross Weight 6160 lbs
    Dry Weight 4480 lbs
    Cargo Weight 1680 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14-C
    Furnace BTU 20000 btu
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 5600 lbs
    LP Tank Capacity 32 lbs.
    AC BTU 13500 btu
    Awning Info 12'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Murphy Bed Rear Bath

  • Sundance Ultra Lite 201 RD

    Sundance Ultra Lite 201 RD Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 201 RD highlights: Single Slide Out ... more about Sundance Ultra Lite 201 RD

    Featured 201 RD

    Specifications

    Sleeps 4
    Slides 1
    Length 24 ft 3 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Hitch Weight 480 lbs
    Gross Weight 7480 lbs
    Dry Weight 4800 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14-C
    Furnace BTU 20000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 32 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Front Bedroom

  • Sundance Ultra Lite 221 RB

    Sundance Ultra Lite 221 RB Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 221 RB highlights: U-Dinette Rear ... more about Sundance Ultra Lite 221 RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 10 in
    Ext Width 8 ft
    Ext Height 10 ft 10 in
    Hitch Weight 365 lbs
    Gross Weight 7365 lbs
    Dry Weight 4390 lbs
    Cargo Weight 2745 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 38 gals
    Black Water Capacity 38 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 32 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 14'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    U Shaped Dinette Front Bedroom Rear Bath

  • Sundance Ultra Lite 241 BH

    Sundance Ultra Lite 241 BH Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 241 BH highlights: U-Dinette Rear ... more about Sundance Ultra Lite 241 BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 27 ft 7 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 560 lbs
    Gross Weight 7556 lbs
    Dry Weight 5280 lbs
    Cargo Weight 2505 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 38 gals
    Black Water Capacity 38 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 32 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 20'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Sundance Ultra Lite 261 RK

    Sundance Ultra Lite 261 RK Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 261 RK highlights: Rear Kitchen ... more about Sundance Ultra Lite 261 RK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 28 ft 6 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 380 lbs
    Gross Weight 7420 lbs
    Dry Weight 5420 lbs
    Cargo Weight 2100 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 76 gals
    Black Water Capacity 38 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 4585 lbs
    LP Tank Capacity 32 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 20'
    Axle Count 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Two Entry/Exit Doors Rear Kitchen Front Bedroom

  • Sundance Ultra Lite 262 RB

    Sundance Ultra Lite 262 RB Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 262 RB highlights: Single Slide Out ... more about Sundance Ultra Lite 262 RB

    Featured 262 RB

    Specifications

    Sleeps 6
    Slides 1
    Length 30 ft 10 in
    Ext Width 0 ft
    Ext Height 10 ft 11 in
    Hitch Weight 780 lbs
    Gross Weight 7780 lbs
    Dry Weight 5920 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14C
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 32 lbs.
    Cargo Deck Size 0 ft
    Awning Info 20'
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Front Bedroom Rear Bath

  • Sundance Ultra Lite 273 RL

    Sundance Ultra Lite 273 RL Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 273 RL highlights: Rear Living Room ... more about Sundance Ultra Lite 273 RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 660 lbs
    Gross Weight 7660 lbs
    Dry Weight 5920 lbs
    Cargo Weight 1740 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 32 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 20'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Rear Living Area Two Entry/Exit Doors Front Bedroom

  • Sundance Ultra Lite 278 BH

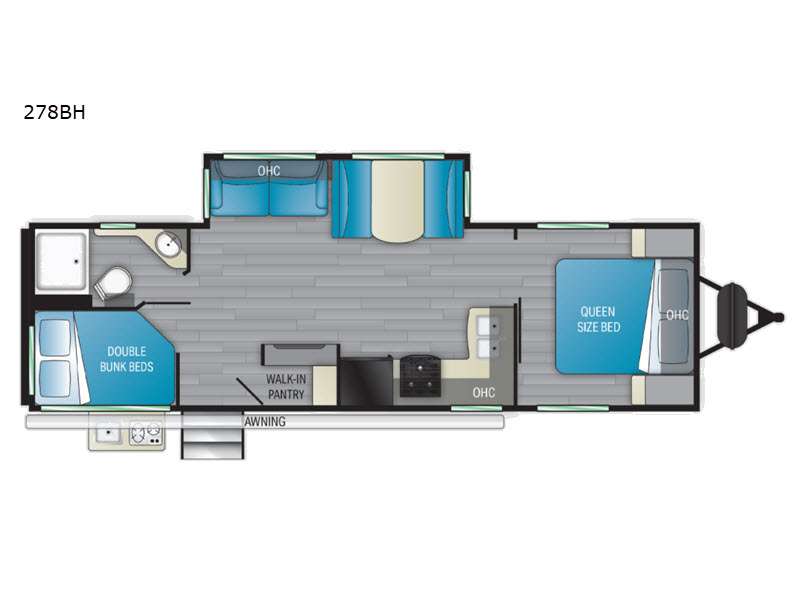

    Sundance Ultra Lite 278 BH Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 278 BH highlights: Double Bunk Beds ... more about Sundance Ultra Lite 278 BH

    Featured 278 BH

    Specifications

    Sleeps 8
    Slides 1
    Length 32 ft 10 in
    Ext Width 0 ft
    Ext Height 10 ft 11 in
    Hitch Weight 660 lbs
    Dry Weight 6640 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 30 gals
    Tire Size ST225/75R15
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 48 lbs.
    Cargo Deck Size 0 ft
    Awning Info 20'
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Front Bedroom

  • Sundance Ultra Lite 283 RB

    Sundance Ultra Lite 283 RB Floorplan Image

    Take a Virtual Tour

    Heartland Sundance Ultra Lite travel trailer 283 RB highlights: Rear Bunk House ... more about Sundance Ultra Lite 283 RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 34 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Hitch Weight 820 lbs
    Gross Weight 9620 lbs
    Dry Weight 6920 lbs
    Cargo Weight 2700 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 30 gals
    Tire Size ST225/75R15-D
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 8800 lbs
    LP Tank Capacity 32 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 20'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Bath and a Half Walk-Thru Bath

  • Sundance Ultra Lite 291 QB

    Sundance Ultra Lite 291 QB Floorplan Image

    Take a Virtual Tour

    Heartland Sundance Ultra Lite travel trailer 291 QB highlights: Rear Bunk House ... more about Sundance Ultra Lite 291 QB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 31 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 710 lbs
    Gross Weight 7710 lbs
    Dry Weight 5930 lbs
    Cargo Weight 1780 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 32 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 18'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Front Bedroom

  • Sundance Ultra Lite 292 BH

    Sundance Ultra Lite 292 BH Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 292 BH highlights: Two Entry Doors ... more about Sundance Ultra Lite 292 BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 2
    Length 31 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 11 in
    Hitch Weight 675 lbs
    Gross Weight 7675 lbs
    Dry Weight 6245 lbs
    Cargo Weight 1430 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 32 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 18'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Two Entry/Exit Doors

  • Sundance Ultra Lite 293 RL

    Sundance Ultra Lite 293 RL Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 293 RL highlights: Double Slide ... more about Sundance Ultra Lite 293 RL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 0 ft
    Ext Width 8 ft
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST205/75R14-C
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Axle Weight 7000 lbs
    LP Tank Capacity 32 lbs.
    AC BTU 13500 btu
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Sundance Ultra Lite 312 BH

    Sundance Ultra Lite 312 BH Floorplan Image

    Heartland Sundance Ultra Lite travel trailer 312 BH highlights: Rear Bunk House ... more about Sundance Ultra Lite 312 BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 2
    Length 35 ft 5 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Hitch Weight 790 lbs
    Gross Weight 8590 lbs
    Dry Weight 6844 lbs
    Cargo Weight 2746 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST225/75R15-D
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 8800 lbs
    LP Tank Capacity 32 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info 19'
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

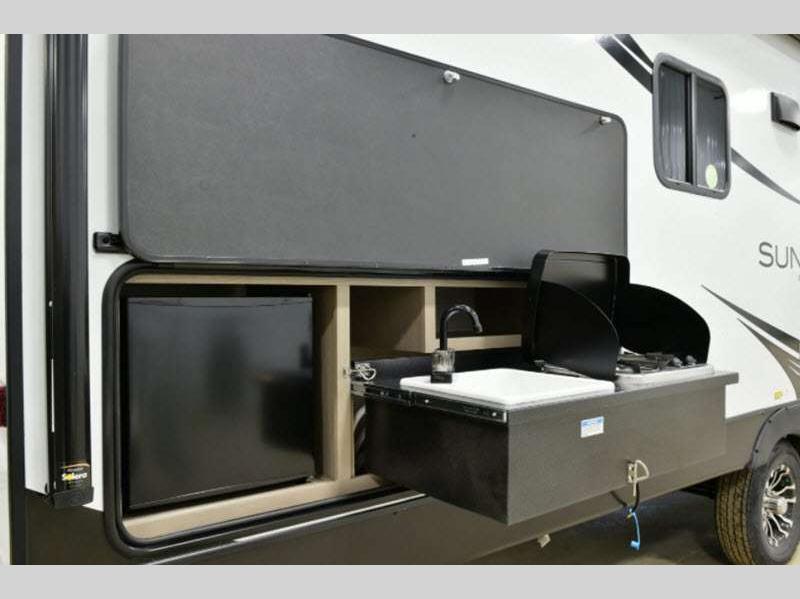

    Bunkhouse Outdoor Kitchen Two Entry/Exit Doors

Sundance Ultra Lite Features:

Standard Features



  • Universal Docking Center
  • E-Z Lube Hubs
  • Dexter Axles
  • Aluminum Wheels
  • Painted Fiberglass Front Cap
  • Slam Latch Baggage Doors
  • 30" Main Entry Door w/Friction Hinge
  • Triple Entry Step (Alum.)
  • Large Assist Entry Handle
  • Outside Shower
  • Solar Prep
  • 6 cu. ft. Stainless Steel Refrigertor
  • Pull Out Faucet
  • LED Interior Lighting
  • Flush Mount Range w/Glass Top
  • Flush Floor Slides
  • Spring Loaded Hidden Hinge Cabinets
  • Black Tank Flush
  • Back-up Camera Prep
  • Dual Ducted A/C

Options

  • 15k A/C
  • 50 AMP Service



See us for a complete list of features and available options.



All features and specifications are subject to change.

Manu-Facts:

Heartland Recreational Vehicles LLC, Elkhart, Ind., was founded in 2003 by a quintet of RV veterans. Their philosophy is lower numbers mean a better market and better dealers. That was one of the reasons why all of them left their previous companies to bring Heartland RV to the public.

The first product created by Heartland was a high-end fifth wheel. The LANDMARK which was aimed at extended-stay RVers who spend a lot of time in their coaches at one location was picked to create first on purpose because it was going to be the hardest to build and they wanted to prove that they could do it and do it right.

Because of the success with the Landmark they were able to introduce the BIGHORN in 2004. From this debut, Heartland doubled its dealer base, and added three new coaches in 2005, the CYCLONE toy hauler, SUNDANCE mid-profile fifth wheel, and the entry level line callled the TRAIL RUNNER.

In 2006, Heartland broke ground on a new 110,000 sq. ft. production facility with a new corporate office structure attached.  By the spring of 2006, Heartland had moved into the Top Ten 5th wheel manufacturers, and by the end of the year were solidly #8 with their eyes toward the #5 spot.  Heartland was again poised for growth and launched the BIG COUNTRY 5th wheel and RAZOR toy hauler.

In the spring of 2007, Heartland introduced the NORTH TRAIL line of laminated construction light weight travel trailers and 5th wheels. Continued growth continued and in 2008 another expansion in a new 80,000 sq. ft. facility to produce NORTH COUNTRY wood constructed aluminum sided travel trailers.  The North Country builds on Heartlands tradition of doing it better and doing things right.  In just a few short years Heartland is now #3 in 5th wheels and closing in fast on being among the top 5 towable manufacturers of 5th wheels and travel trailers combined.

Their goal is not to be a high volume company. Heartland aims to create demand from their dealers and for their dealers, and keep innovations going. With notable technological accomplishments like the Patented improved 88 degree turning radius for extended-cab or short-bed pickup trucks and the development of a universal docking center they have proven year after year that they are well on their way to doing exactly what they set out to do!
