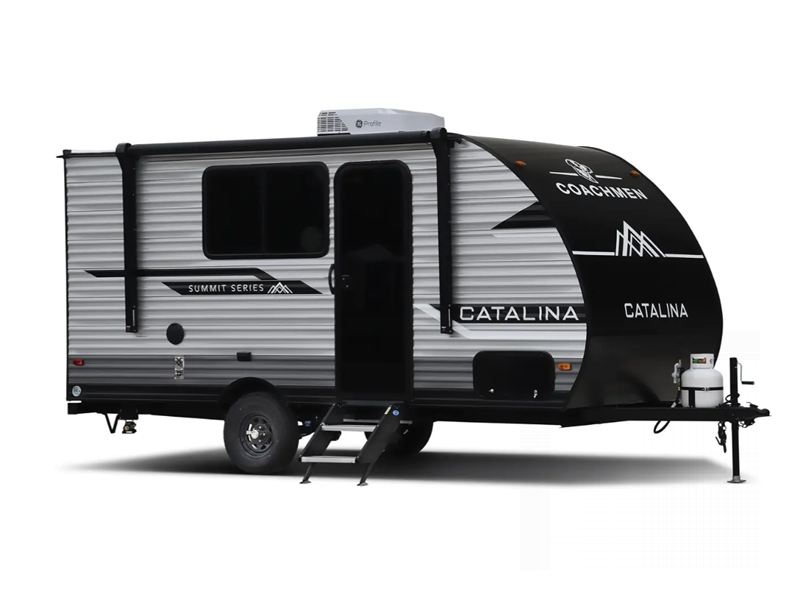

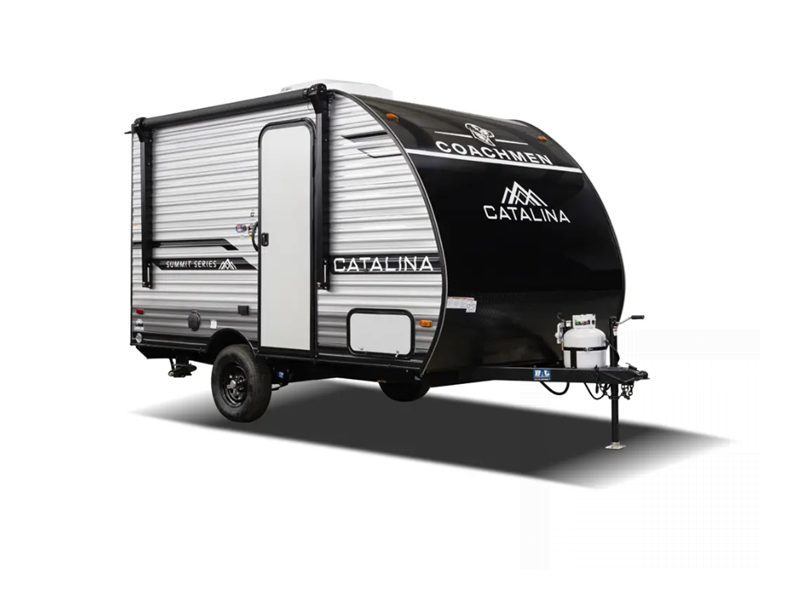

The Catalina Summit 7' travel trailers by Coachmen are built for first-timers, families, and explorers that like to push the boundaries when camping, yet don't want to give up any comforts.  Also affordable, and offered in light dry weights so you can tow with a wide range of vehicles.

Each is built on a cambered structural steel l-beam frame, with a 3/8" fully decked walk-on roof, a Darco subfloor protective wrap/enclosure, and Dexter EZ Lube axles with leaf spring suspension.  A few more features include a battery disconnect switch on the A frame, a premium exterior graphics package, and an LP quick connect port. Inside you will find linoleum flooring, an upgraded slim design range hood, and an all-in-one entertainment TV with independent dual zone control.

When you are ready for affordable camping, simplicity, and sparking your adventurous side, choose a Catalina Summit 7' travel trailer

  • Catalina Summit Series 7 174BH

    Catalina Summit Series 7 174BH Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Summit Series 7' travel trailer 174BH highlights: Bunk Beds ... more about Catalina Summit Series 7 174BH

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 20 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 6 in
    Interior Color Java
    Hitch Weight 428 lbs
    Gross Weight 4400 lbs
    Dry Weight 3378 lbs
    Cargo Weight 1022 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14"
    Furnace BTU 20000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V Two Door
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 4000 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 15' Electric w/Multicolor LED Strip & Remote
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse

  • Catalina Summit Series 7 174BHS

    Catalina Summit Series 7 174BHS Floorplan Image

    Coachmen Catalina Summit Series 7' travel trailer 174BHS highlights: Single ... more about Catalina Summit Series 7 174BHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 20 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 6 in
    Interior Color Java
    Hitch Weight 366 lbs
    Gross Weight 4366 lbs
    Dry Weight 3550 lbs
    Cargo Weight 816 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14"
    Furnace BTU 20000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type 12V Two Door
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 4000 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 13' Electric w/Multicolor LED Strip & Remote
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse

  • Catalina Summit Series 7 174FQS

    Catalina Summit Series 7 174FQS Floorplan Image

    Coachmen Catalina Summit Series 7' travel trailer 174FQS highlights: Single ... more about Catalina Summit Series 7 174FQS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 20 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 6 in
    Interior Color Java
    Hitch Weight 420 lbs
    Gross Weight 4400 lbs
    Dry Weight 3534 lbs
    Cargo Weight 866 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14"
    Furnace BTU 20000 btu
    Available Beds Queen
    Refrigerator Type 12V Two Door
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Shower Size 32" x 32"
    Number of Awnings 1
    Axle Weight 4000 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 13' Electric w/Multicolor LED Strip & Remote
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Radius
    Electrical Service 30 amp

  • Catalina Summit Series 7 174RB

    Catalina Summit Series 7 174RB Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Summit Series 7' travel trailer 174RB highlights: Rear ... more about Catalina Summit Series 7 174RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 20 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 6 in
    Interior Color Java
    Hitch Weight 408 lbs
    Gross Weight 4300 lbs
    Dry Weight 3350 lbs
    Cargo Weight 950 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14"
    Furnace BTU 20000 btu
    Available Beds Murphy
    Refrigerator Type 12V Two Door
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 4000 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 13' Electric w/Multicolor LED Strip & Remote
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Murphy Bed Rear Bath

  • Catalina Summit Series 7 184BHS

    Catalina Summit Series 7 184BHS Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Summit Series 7 travel trailer 184BHS highlights: Double-Size ... more about Catalina Summit Series 7 184BHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 23 ft 1 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 6 in
    Interior Color Java
    Hitch Weight 492 lbs
    Gross Weight 5500 lbs
    Dry Weight 4202 lbs
    Cargo Weight 1298 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 15"
    Furnace BTU 20000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type 12V Two Door
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 5100 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 15' Electric w/Multicolor LED Strip & Remote
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Catalina Summit Series 7 184DBK

    Catalina Summit Series 7 184DBK Floorplan Image

    Coachmen Catalina Summit Series 7' travel trailer 184DBK highlights: Double-Size ... more about Catalina Summit Series 7 184DBK

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Length 23 ft 1 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Int Height 6 ft 6 in
    Interior Color Java
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 15"
    Furnace BTU 20000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type 12V Two Door
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    Axle Weight 5100 lbs
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 13' Electric w/Multicolor LED Strip & Remote
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Murphy Bed

Catalina Summit Series 7 Features:

Standard Features (2021)



Exterior

  • Electric Awning w/Multicolor LED Strip & Remote - Carefree
  • Heavy Duty Standard Tongue Jack
  • Black Tank Flush
  • Battery Disconnect Switch
  • 20lb. LP Tank (1) w/ABS Cover
  • LP Quick Connect
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • (2) JBL Elite Exterior Speakers
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Rain Gutters with Drip Spouts
  • Radius Entry Steps
  • XL Swing Arm Grab Handle
  • Rear View Camera Prep
  • Bottle Openers (Exterior Camp Kitchens)
  • Pets – “Leash Link” Quick Hookup D-Ring

Construction & Equipment

  • Cambered Structural Steel I-Beam Frame
  • Full Length Frame E-Coated Outriggers
  • 5/8" Tongue & Groove Plywood Floor Decking
  • 2"x2" Floor Joists on Approximately 12" Centers
  • 5" Floor To Frame Steel Lag Bolts (4" Summit 7/Expedition)
  • Darco Subfloor Protective Wrap/Enclosure
  • 3/8" Fully Decked Walk-On Roof
  • Seamless Alpha Roof Membrane with 18 Year Warranty
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 78" Interior Height
  • Schwintek Slide Out
  • R-7 Fiberglass Insulation Throughout
  • 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Polished HD Aluminum Fender Skirts
  • Spare Tire, Carrier, and Cover
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Painted Bumper w/ Drain Hose Carrier and End Caps
  • 20,000 BTU Furnace w/Wall Thermostat
  • 13,500 BTU Central A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Converter
  • Upgraded Aluminum Wheels
  • Magnetic Baggage Door Latches

Safety

  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door

Interior

  • (2) 12V 14” Ceiling Vent Fans (Living Room & Bathroom)
  • MP3/FM Stereo w/Bluetooth and USB Charge Port
  • (2) Interior Ceiling Speakers

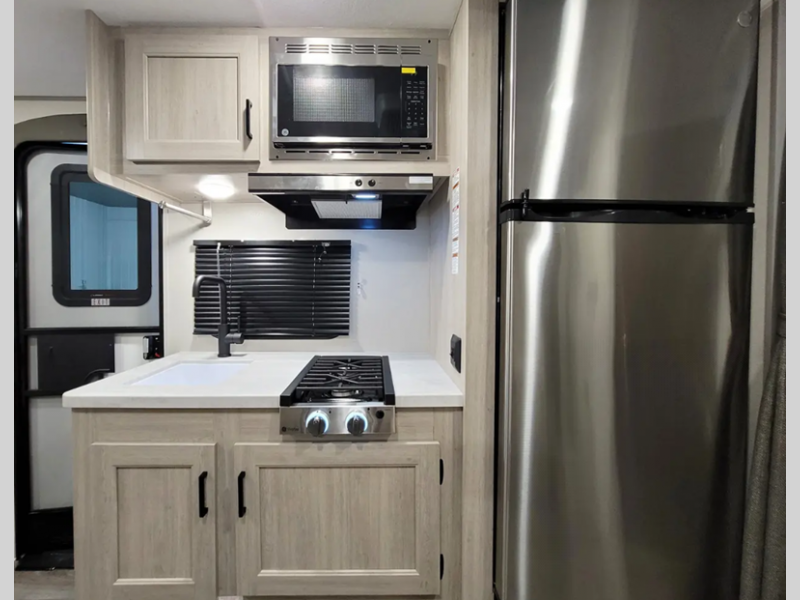

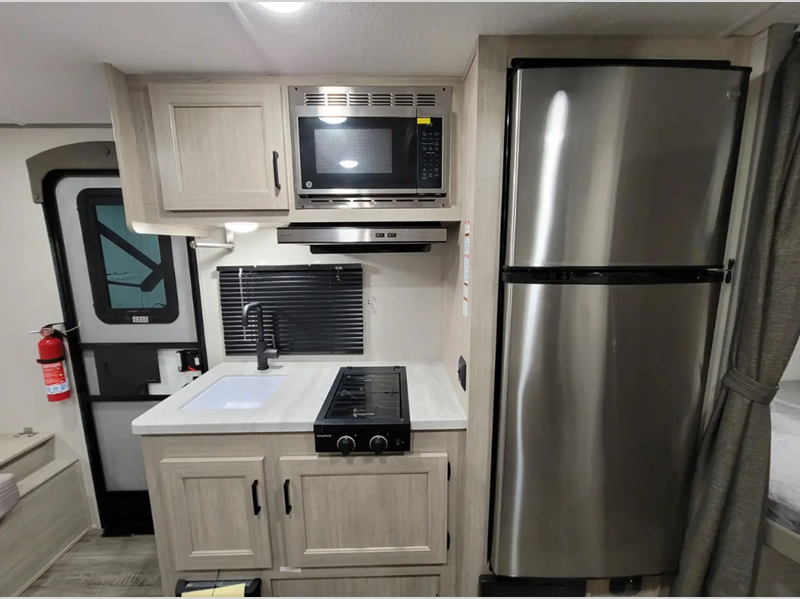

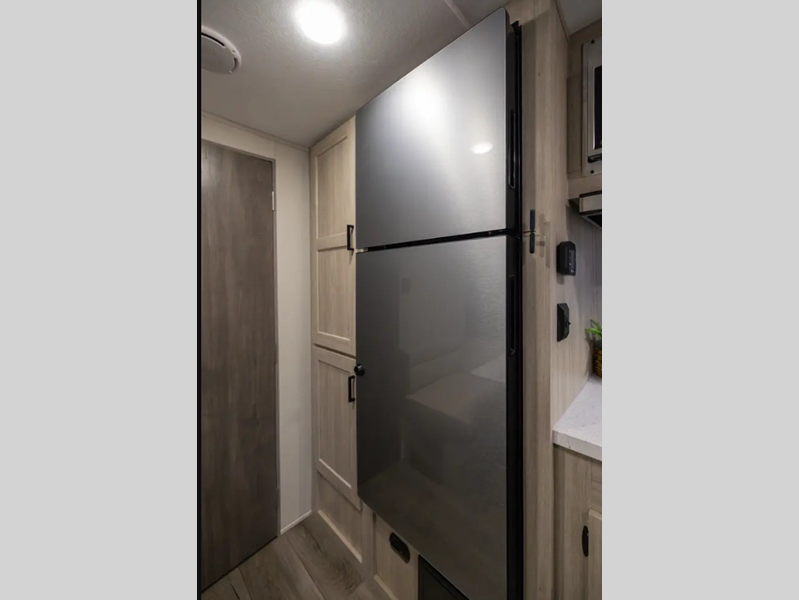

  • 10 Cu. Ft. 12V Refrigerator
  • Seamless Thermofoil Countertops Throughout
  • Under-mount Farm Style Sink
  • High Rise Bullet Style Kitchen Faucet
  • Flush Thermofoil Kitchen Sink Covers (2) (Tandem Axle Models)
  • Full Length Kitchen Drawer Guides
  • Salvaged Light Oak Cabinets

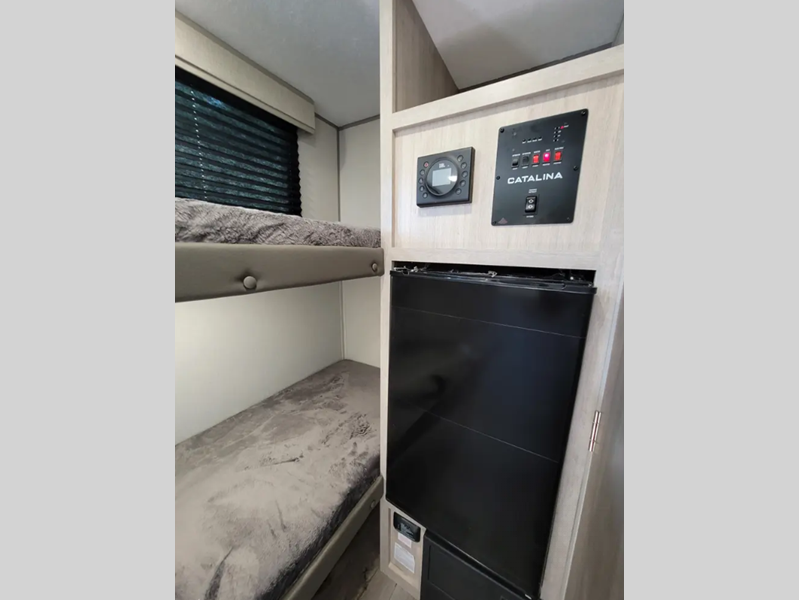

  • All-In-One Monitor Panel System
  • 2 Burner High Output Range
  • Slim Line Range Hood
  • Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • Flex Ducted Cabinet/Wall Heat (261BH Only on Summit 8)
  • LED Interior Lighting
  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest (174FQS)

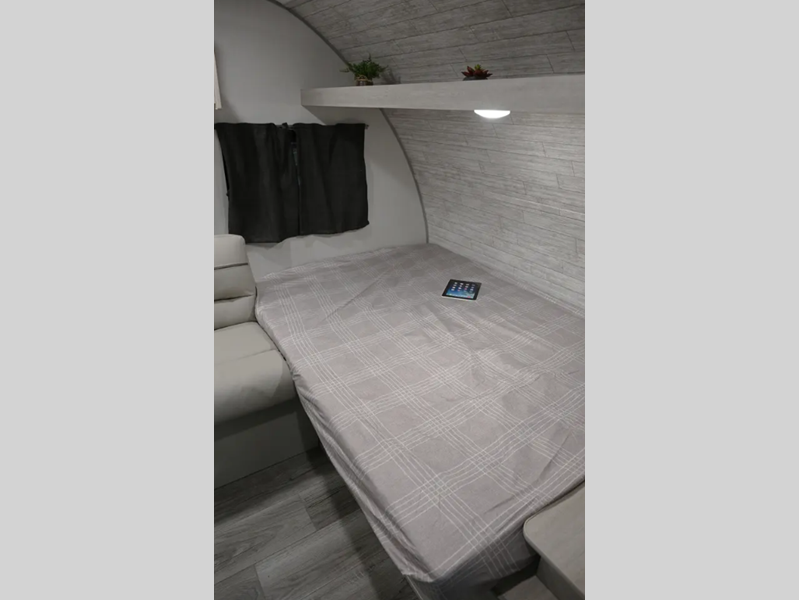

  • Murphy Bed Sofa (Per floorplan)
  • Decorative Sofa Throw Pillows
  • Hard Valance Window Treatment w/Decorative Lambrequins
  • Pleated Night Window Shades
  • Pedestal Thermofoil Dinette Table (N/A 192FQS/174FQS)
  • Portable Thermofoil Dinette Table (192FQS/174FQS Only)
  • Dinette Storage Under Benches

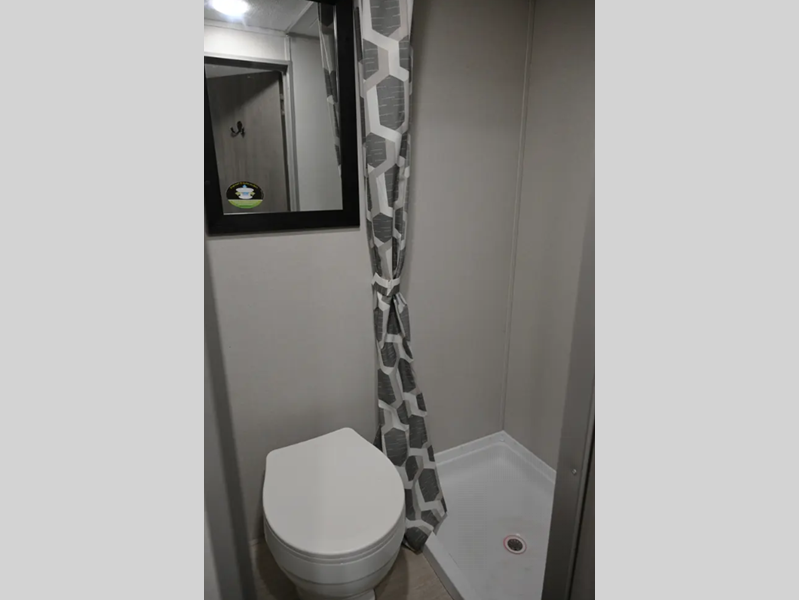

  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves
  • Medicine Cabinet with Mirror
  • Bedroom USB Surface Mounts(2)
  • USB Surface Mount Near Bunk Beds
  • Master Bedroom Overhead Cabinets
  • Quilted Designer Bedspread
  • Teddy Bear Bunk Mats

Options

  • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts
  • 15,000 BTU Ducted A/C IPO 13.5 A/C
  • SolidStep Entrance Steps IPO Flip-Down Steps (Main Entrance Only)
  • Off-Grid Solar Package – 40A Controller w/Bluetooth App & 100W Panel

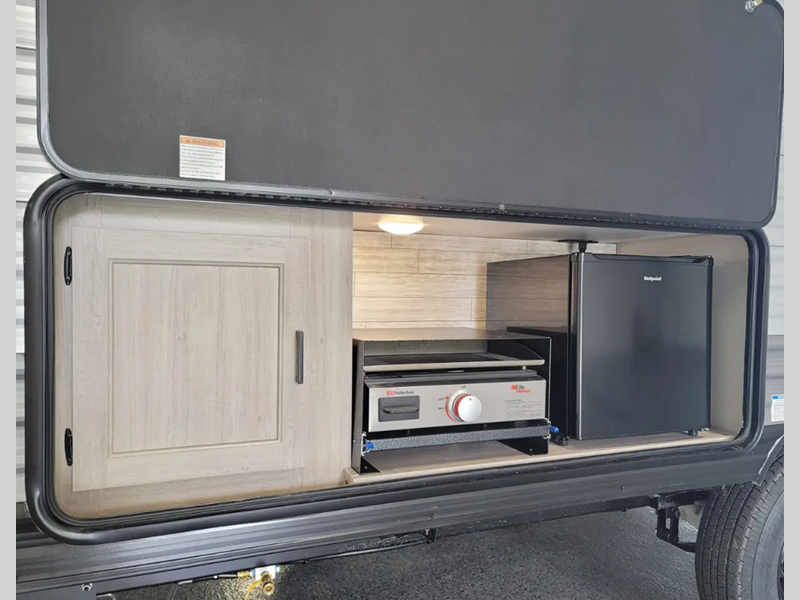

  • Exterior Camp Kitchen (184BHS, 184DBK, & 261BHS)
  • Electric Tongue Jack
  • CSA Standards

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
