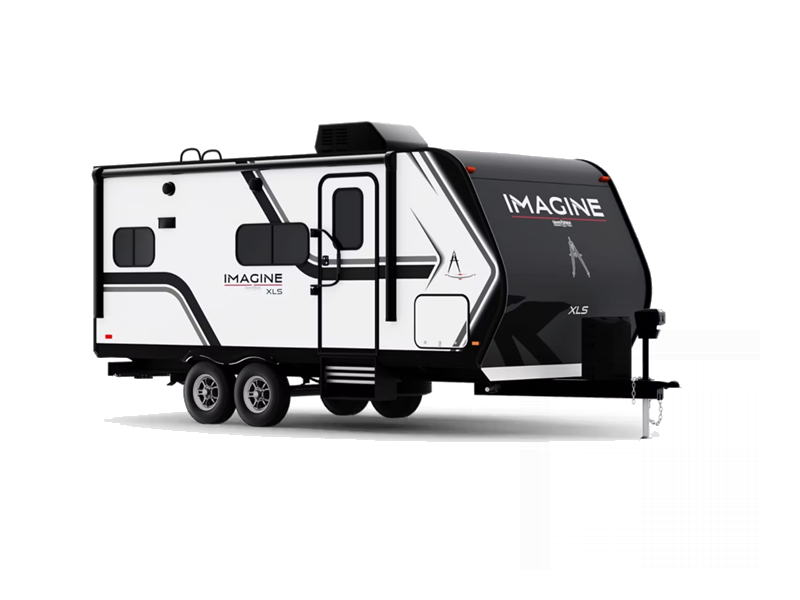

Grand Design Imagine XLS Travel Trailer

Previous
Next
1 of 31
View Floorplans Request Info
Factory Brochure Print Page

Grand Design expands their lineup with the Imagine XLS travel trailer starting under 4,500-pounds. Imagine XLS adheres to more of today's medium duty trucks and SUVs, without compromising features that other manufacturers eliminate for a lighter weight unit.



This travel trailer combines convenience and comfort in a sleek, modern way not only with the interior, but also the exterior. The gel coated fiber glass exterior will catch your eye, but the all-in-one location for utilities and hook ups, plus easy access in the pass-through storage on most models, will hold your attention. Solid hardwood drawers fronts and the frosted glass cabinet door inserts in the overhead cabinets enclose the stainless steel appliances. A spacious 30" x 36" residential walk-in shower with a 17.8 Gal./Hr. quick recovery water heater allows you to unwind after a day full of adventure.



Grand Design manufacturing is the first RV company to achieve multiple Quality Circle awards. After construction, each product goes through an initial quality inspection process to ensure your safety. So, if you're looking for light weight towing and quality construction, then the Grand Design Imagine XLS travel trailer is what you need!

  • Imagine XLS 18RBE

    Imagine XLS 18RBE Floorplan Image

    Grand Design Imagine XLS 18RBE travel trailer highlights: Murphy Bed Rear Bath ... more about Imagine XLS 18RBE

    Featured 18RBE

    Specifications

    Sleeps 3
    Length 22 ft 6 in
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 408 lbs
    Gross Weight 5595 lbs
    Dry Weight 4197 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Available Beds Murphy
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info HD LED
    Awning Info 13' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Murphy Bed Front Bedroom Rear Bath

  • Imagine XLS 17MKE

    Imagine XLS 17MKE Floorplan Image

    Grand Design Imagine XLS 17MKE travel trailer highlights: Murphy Bed Rear Bath ... more about Imagine XLS 17MKE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 22 ft 11 in
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 428 lbs
    Gross Weight 5795 lbs
    Dry Weight 4456 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Available Beds Murphy
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    TV Info LR HD LED
    Awning Info 14' Electric w/LED Light
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Murphy Bed Rear Bath

  • Imagine XLS 19BWE

    Imagine XLS 19BWE Floorplan Image

    Grand Design Imagine XLS 19BWE travel trailer highlights: Double Size Bunks ... more about Imagine XLS 19BWE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 23 ft 6 in
    Ext Width 0 ft
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 483 lbs
    Gross Weight 5995 lbs
    Dry Weight 4838 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 82 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info HD LED
    Awning Info 16' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Murphy Bed

  • Imagine XLS 19RLE

    Imagine XLS 19RLE Floorplan Image

    Grand Design Imagine XLS 19RLE travel trailer highlights: Murphy Bed ... more about Imagine XLS 19RLE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Length 23 ft 6 in
    Ext Width 0 ft
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 426 lbs
    Gross Weight 5695 lbs
    Dry Weight 4210 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Available Beds Murphy
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    TV Info HD LED
    Awning Info 16' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    U Shaped Dinette Murphy Bed Front Bedroom

  • Imagine XLS 20BHE

    Imagine XLS 20BHE Floorplan Image

    Grand Design Imagine XLS 20BHE travel trailer highlights: Bunks Bench ... more about Imagine XLS 20BHE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 23 ft 6 in
    Ext Width 0 ft
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 471 lbs
    Gross Weight 5995 lbs
    Dry Weight 4688 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info HD LED
    Awning Info 16' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Murphy Bed

  • Imagine XLS 21BHE

    Imagine XLS 21BHE Floorplan Image

    Grand Design Imagine XLS travel trailer 21BHE highlights: Outside Kitchen Murphy ... more about Imagine XLS 21BHE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Length 24 ft 11 in
    Ext Width 0 ft
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 456 lbs
    Gross Weight 5895 lbs
    Dry Weight 4497 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    TV Info HD LED
    Awning Info 15' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Murphy Bed

  • Imagine XLS 22RBE

    Imagine XLS 22RBE Floorplan Image

    Grand Design Imagine XLS travel trailer 22RBE highlights: Private Bedroom Queen ... more about Imagine XLS 22RBE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 25 ft 11 in
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 465 lbs
    Gross Weight 6395 lbs
    Dry Weight 4997 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Available Beds Queen
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    TV Info LR 32" LED
    Awning Info 18' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Front Bedroom Rear Bath

  • Imagine XLS 23BHE

    Imagine XLS 23BHE Floorplan Image

    Grand Design Imagine XLS travel trailer 23BHE highlights: Double Size Bunks ... more about Imagine XLS 23BHE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 27 ft 11 in
    Ext Width 0 ft
    Ext Height 10 ft 5 in
    Int Height 6 ft 6 in
    Hitch Weight 504 lbs
    Gross Weight 6995 lbs
    Dry Weight 5296 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 37 gals
    Furnace BTU 25000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Type Quick Recovery
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR 32" LED
    Awning Info 20' Electric w/LED Light
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Front Bedroom

Imagine XLS Features:

Standard Features (2020)



Exterior

  • Solar Power Inlet
  • Backup Camera Prep
  • 80% Tint Radius Safety Glass Windows
  • 20# LP Bottles (2)
  • 28" Radius Entry Door
  • Exterior Speakers
  • High-Capacity Water Pump
  • Battery Kill Switch (Pass Thru)
  • Extra Large 2” Fresh Water Drain Valve
  • Oversized Tank Capacities

Construction

  • Gel Coated Fiberglass Exterior
  • One-Piece Roof Membrane with 12-Year Warranty
  • Easy Access Low Point Drain Valves
  • Insulated Slam Latch Storage Doors
  • Friction Hinge Entry Door
  • Magnetic Storage Door Catches
  • Laminated Aluminum Framed Rear Wall (R-7)
  • Laminated Aluminum Framed Side Walls (R-7)
  • Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-7)
  • Laminated Aluminum Framed Main Floor (R-30)
  • 5" Radius Wood Framed Roof (R-40)

Interior

  • Solid Hardwood Drawer Fronts
  • Frosted Glass Cabinet Door Inserts (Overhead Cabinets)
  • Solid Core Cabinet Stiles
  • Pre-Drilled and Screwed Face Frames
  • Ball Bearing Full Extension Drawer Glides
  • Large Panoramic Window
  • 78" Interior Ceiling
  • Telescoping Dinette Table

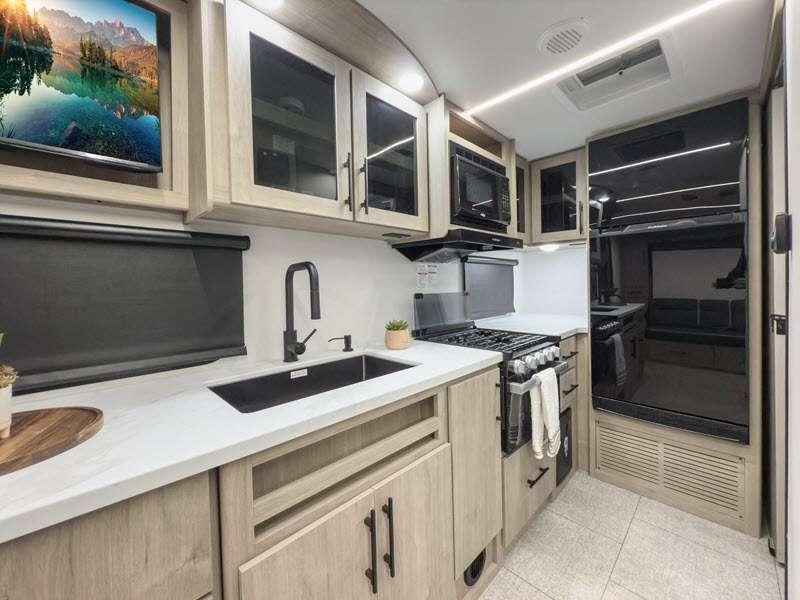

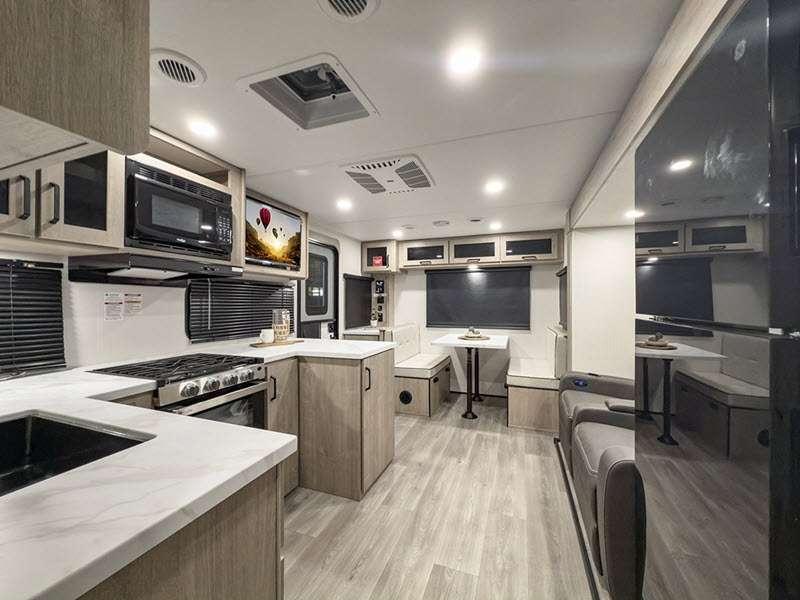

Kitchen

  • Sink Cover
  • Residential Countertops
  • Stainless Steel Microwave
  • Stainless Steel 3-Burner Range with Oven
  • Double Door Refrigerator

Bedroom

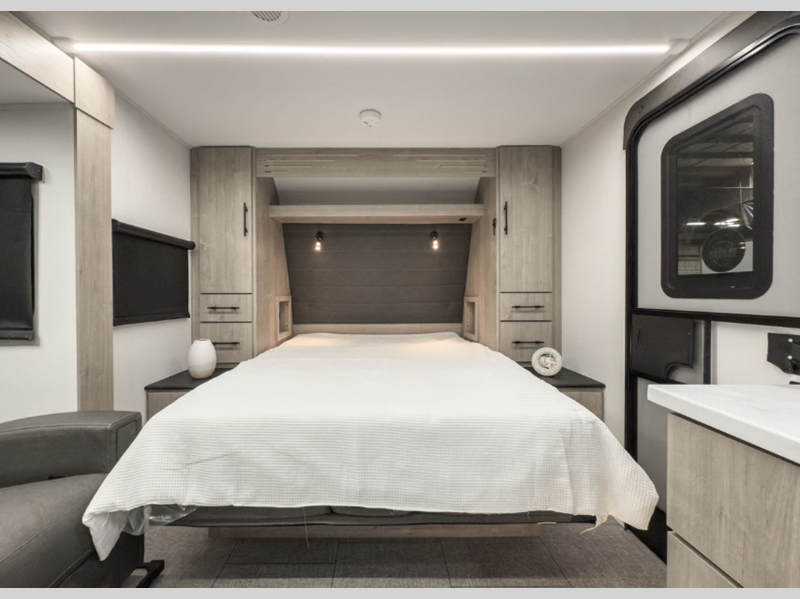

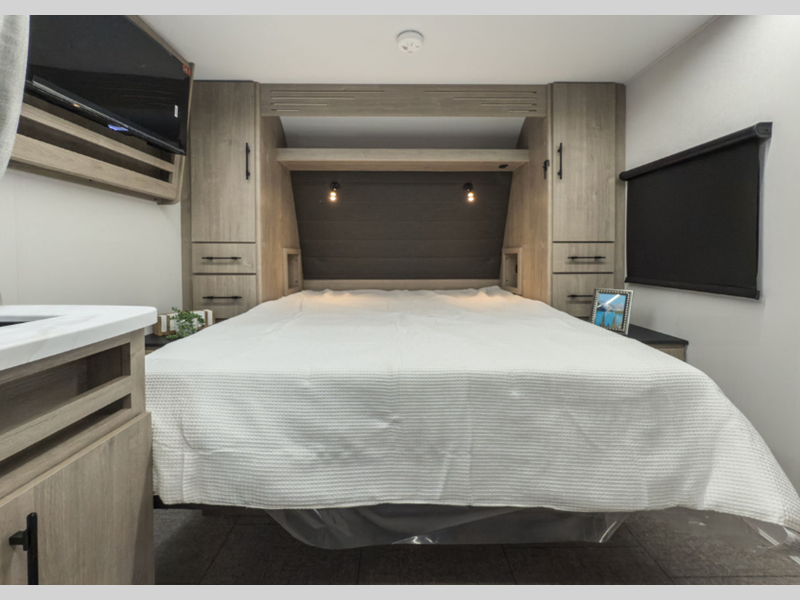

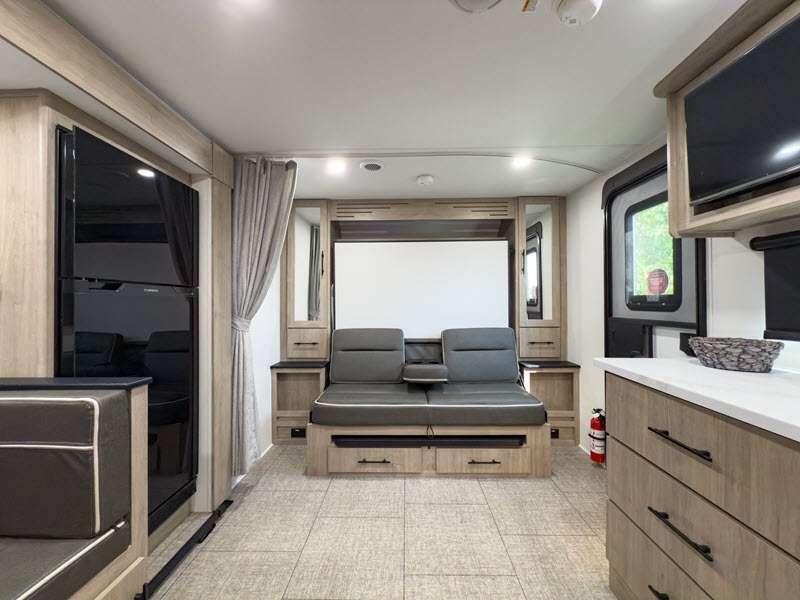

  • 60X80 Murphy Bed w/ Storage Drawers (NA 22RBE)
  • Residential Bedspread
  • TV and Cable/SAT Prep

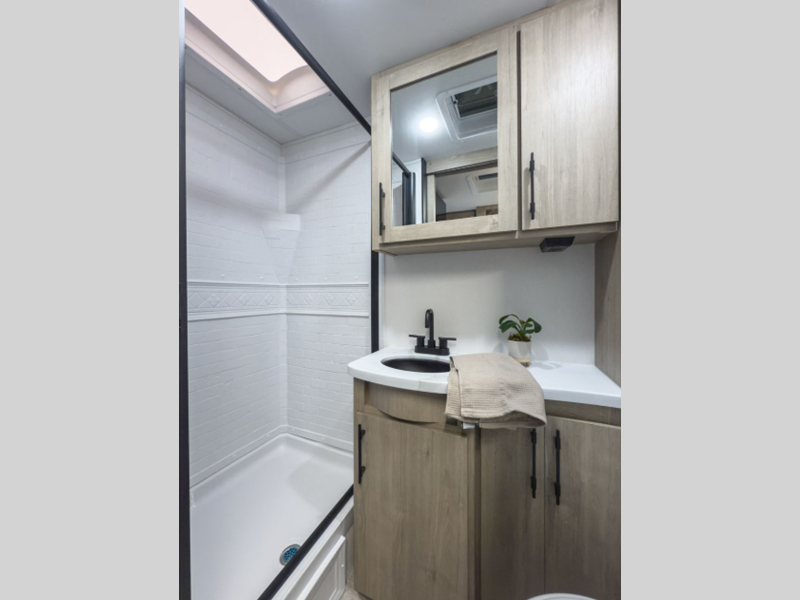

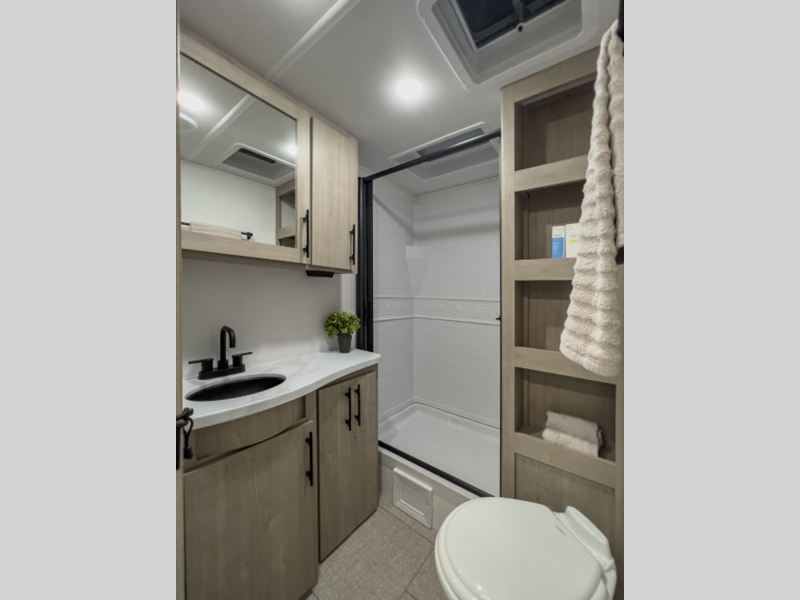

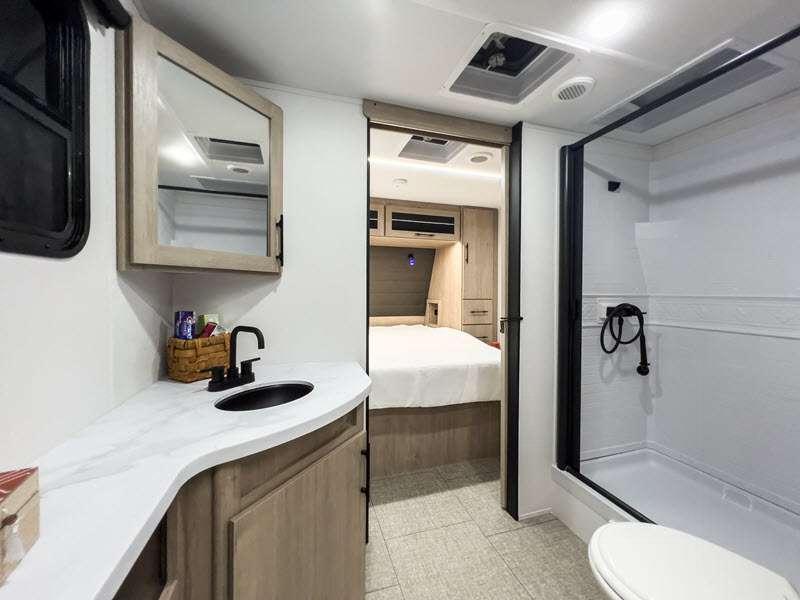

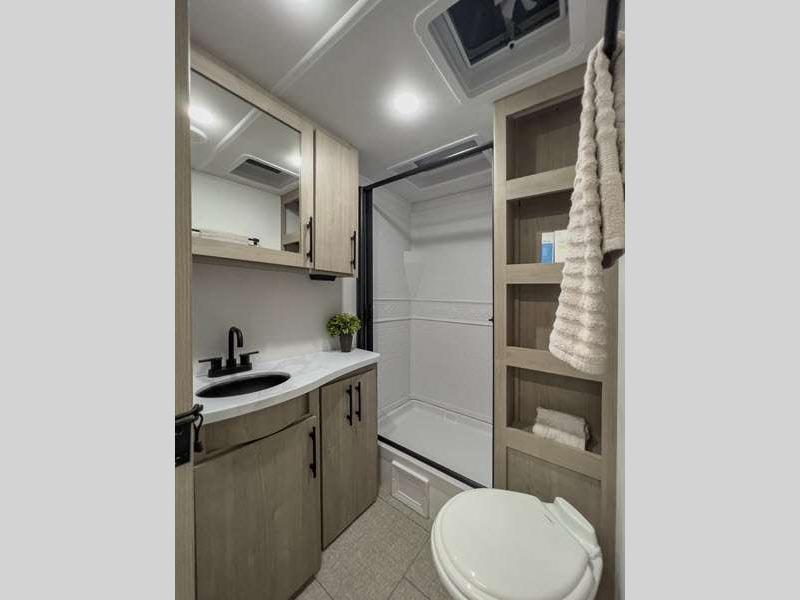

Bathroom

  • 30" x 36" Residential Walk-In Shower
  • Skylight Over Shower
  • Power Vent Fan
  • Medicine Cabinet with Mirror

Packages

Peace of Mind Package

  • Aluminum Entry Steps
  • Stainless Steel Appliances
  • Universal Docking Station
  • 17.8 Gal./Hr. Quick Recovery Water Heater
  • Black Tank Flush
  • Spare Tire and Carrier
  • Nitrogen Filled Radial Tires
  • Diamond Plate Front Rock Guard
  • Deep Seated Stainless Steel Sink
  • Residential Pull-Down Sprayer Faucet
  • Aluminum Rims

Ultimate Power Package (Mandatory)

  • Electric Awning with LED Light
  • LED Interior Lighting
  • Motion Sensor Entry and Pass Thru Lighting (LED)
  • Bluetooth Stereo
  • High Definition LED Television
  • Detachable Marine Grade Power Cord with LED Light
  • 13.5k Main A/C
  • 30 AMP Service
  • Power Tongue Jack

Four Season Protection Package (Mandatory)

  • 25k BTU High Capacity Furnace

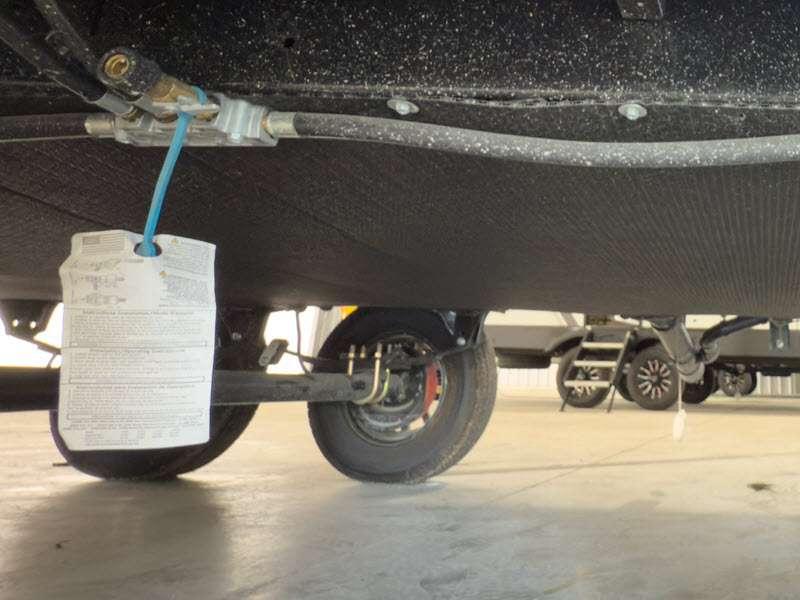

  • Heated and Enclosed Underbelly with Suspended Tanks
  • Designated Heat Duct to Subfloor
  • High Density Roof Insulation with Attic Vent
  • Moisture Barrier Floor Enclosure
  • Residential (Ductless) Heating System Throughout
  • Double Insulated Roof and Front Cap (R-40)
  • Heated and Enclosed Dump Valves

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
