Heartland Bighorn Fifth Wheel

Previous
Next
1 of 19
View Floorplans Request Info
Factory Brochure Print Page

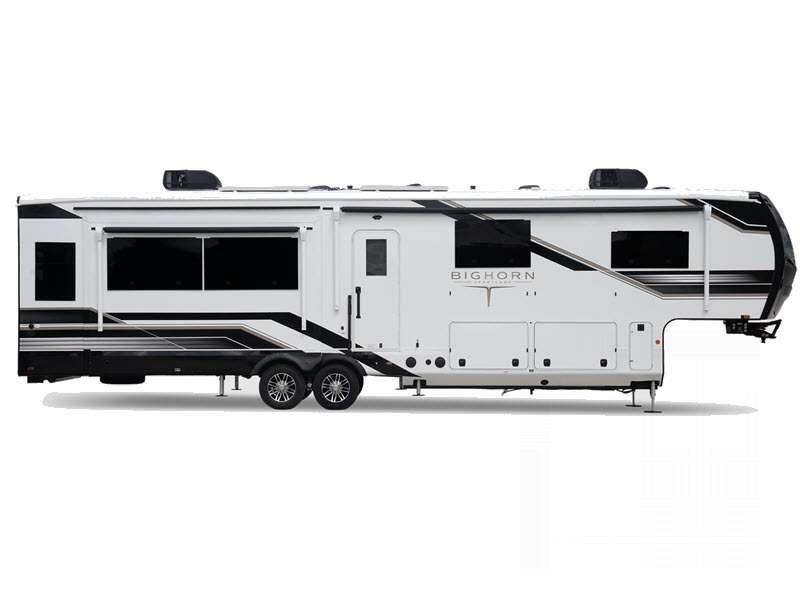

The Bighorn fifth wheel by Heartland RV is quite simply the best fifth wheel value on the market, and is nothing short of spectacular this year. With it's beautiful interiors and outstanding design concept this fifth wheel has taken affordable luxury to another level. Bighorn features real Amish-Crafted hardwood cabinets, including stiles, magnificent furnishings, flush-floor slide outs, and an abundance of interior and exterior storage space, plus over 140 cubic feet just in the pass-through alone!

With the Bighorn you will enjoy designer kitchens featuring a tremendous amount of storage, stainless steel appliances and solid-surface counter-tops with pencil nose edges. The master suite is fit for a king whether you are just lounging, or are settling in for a peaceful night's sleep. Some of the models feature a "side aisle" layout and provide you a private bath quite possibly larger than your own bathroom at home. Now that's luxury!

  • Bighorn 3160 Elite

    Bighorn 3160 Elite Floorplan Image

    Heartland Bighorn fifth wheel 3160 Elite highlights: Mega Tall Slide Out Walk-In ... more about Bighorn 3160 Elite

    Featured 3160 Elite

    Specifications

    Sleeps 4
    Slides 3
    Length 35 ft 10 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2095 lbs
    Gross Weight 15500 lbs
    Dry Weight 12015 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/85R16G
    Furnace BTU 42000 btu
    Available Beds Queen
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED HDTV
    Awning Info 16' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Bighorn 3270RS

    Bighorn 3270RS Floorplan Image

    Take a Virtual Tour

    Heartland Bighorn fifth wheel 3270RS highlights: Triple Slide Outs Pull Out ... more about Bighorn 3270RS

    Featured 3270RS

    Specifications

    Sleeps 4
    Slides 3
    Length 35 ft 2 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2520 lbs
    Gross Weight 15500 lbs
    Dry Weight 11965 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/85R16G
    Furnace BTU 42000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED HDTV
    Awning Info 17' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Bighorn 3500SE

    Bighorn 3500SE Floorplan Image

    Heartland Bighorn fifth wheel 3500SE highlights: Triple Slide Outs King Bed ... more about Bighorn 3500SE

    Featured 3500SE

    Specifications

    Sleeps 6
    Slides 3
    Length 37 ft 5 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2385 lbs
    Gross Weight 16000 lbs
    Dry Weight 13000 lbs
    Cargo Weight 2952 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 84 gals
    Black Water Capacity 84 gals
    Tire Size LT235/85R16G
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED TV
    Awning Info 17' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Bighorn 3575EL

    Bighorn 3575EL Floorplan Image

    Take a Virtual Tour

    Heartland Bighorn fifth wheel 3575EL highlights: Mega Tall Slide Out Plenty of ... more about Bighorn 3575EL

    Featured 3575EL

    Specifications

    Sleeps 4
    Slides 3
    Length 39 ft 4 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2435 lbs
    Gross Weight 16000 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/85R16-G
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED HDTV
    Awning Info 17' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 80 amp

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Bighorn 3750FL

    Bighorn 3750FL Floorplan Image

    Heartland Bighorn fifth wheel 3750FL highlights: Five Slide Outs 55" LCD TV ... more about Bighorn 3750FL

    Featured 3750FL

    Specifications

    Sleeps 6
    Slides 5
    Length 41 ft 9 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2605 lbs
    Gross Weight 16000 lbs
    Dry Weight 13700 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/80R16G
    Furnace BTU 42000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR 55" LCD TV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

    Front Entertainment Rear Bedroom

  • Bighorn 3760EL

    Bighorn 3760EL Floorplan Image

    Take a Virtual Tour

    Heartland Bighorn fifth wheel 3760EL highlights: Mega Tall Slide Out Plenty of ... more about Bighorn 3760EL

    Featured 3760EL

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 11 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2905 lbs
    Gross Weight 16000 lbs
    Dry Weight 13240 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/85R16G
    Furnace BTU 42000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED HDTV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Bighorn 3870FB

    Bighorn 3870FB Floorplan Image

    Take a Virtual Tour

    Heartland Bighorn fifth wheel 3870FB highlights: Triple Slide Outs Spacious ... more about Bighorn 3870FB

    Featured 3870FB

    Specifications

    Sleeps 4
    Slides 3
    Length 43 ft 3 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 3010 lbs
    Dry Weight 13355 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/85R16-G
    Furnace BTU 42000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED HDTV
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

    Rear Living Area Kitchen Island Bath and a Half

  • Bighorn 3871FBO

    Bighorn 3871FBO Floorplan Image

    Heartland Bighorn fifth wheel 3871FBO highlights: Triple Slide Outs Spacious ... more about Bighorn 3871FBO

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 42 ft 2 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2750 lbs
    Gross Weight 16000 lbs
    Dry Weight 14190 lbs
    Cargo Weight 1762 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 84 gals
    Black Water Capacity 84 gals
    Tire Size LT235/85R16G
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED TV
    Awning Info 20' Power
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bath

  • Bighorn 3950FL

    Bighorn 3950FL Floorplan Image

    Heartland Bighorn fifth wheel 3950FL highlights: Five Slide Outs Bath and a Half ... more about Bighorn 3950FL

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 5
    Length 44 ft 6 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Int Height 0 ft
    Hitch Weight 3880 lbs
    Gross Weight 16500 lbs
    Dry Weight 15034 lbs
    Cargo Weight 1418 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 90 gals
    Tire Size LT235/85R16G
    Furnace BTU 40000 btu
    Available Beds Queen
    Cooktop Burners 3
    Number of Awnings 2
    Axle Weight 7000 lbs
    LP Tank Capacity 48 lbs.
    TV Info LR LED HDTV, BR TV
    Awning Info 6' Power, 16' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat

    Similar Floorplans

    Kitchen Island Bath and a Half Front Entertainment

  • Bighorn 3970RD

    Bighorn 3970RD Floorplan Image

    Take a Virtual Tour

    Heartland Bighorn fifth wheel 3970RD highlights: Five Slide Outs Spacious Front ... more about Bighorn 3970RD

    Featured 3970RD

    Specifications

    Sleeps 6
    Slides 5
    Length 43 ft 8 in
    Ext Width 8 ft
    Ext Height 13 ft 3 in
    Hitch Weight 2905 lbs
    Gross Weight 16000 lbs
    Dry Weight 14300 lbs
    Cargo Weight 1902 lbs
    Fresh Water Capacity 65 gals
    Grey Water Capacity 90 gals
    Black Water Capacity 45 gals
    Tire Size LT235/85R16G
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Stainless Steel
    Refrigerator Size 18 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    LP Tank Capacity 30 lbs.
    Water Heater Capacity 12 gal.
    Water Heater Type DSI Gas/Electric
    AC BTU 30000 btu
    TV Info LR LED HDTV
    Awning Info 17' Power
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 2
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

    Rear Entertainment Kitchen Island Front Bedroom

Bighorn Features:

Standard Features

Hand Crafted Cabinetry
  • Glazed hardwood sedona cabinetry & fascia
  • Amish-crafted natural hardwood cabinet doors with hidden hinges and drawers
  • All cabinet frames are pre-drilled, and screwed together - not stapled
  • Baltic birch drawer construction (Real Wood)
  • Deluxe ball-bearing drawer guides
  • PATENT PENDING Front Cap and Frame Design
  • SPECIALLY Designed and Engineered For SHORT BED TRUCKS, allows for tighter turning radius on short bed, extended cab trucks
  • Truly unique aerodynamic profile
  • Painted front cap
Exterior
  • High gloss sidewalls
  • ABS hitch cover
  • Entry door overhead light
  • Automotive aerodynamic styled rear cap with LED turn lights
  • Painted aluminum rear ladder
Universal Docking Center (U.D.C.)
  • 12 volt light
  • Exterior shower with hot & cold water
  • Black tank flush system hook up
  • City water hook-up with high pressure fresh tank fill
  • Shielded RG-6 coaxial cable hook-up
  • Satellite hook-up (roof or tri-pod)
  • Holding tanks pull handles
  • Winterization valves
Largest Exterior Storage in Its Class!
  • Offering over 140 cubic feet of storage!
  • Large insulated slam baggage doors
  • Unobstructed pass-through design
  • 12V lights
  • 1 cable outlet / 110 volt outlet

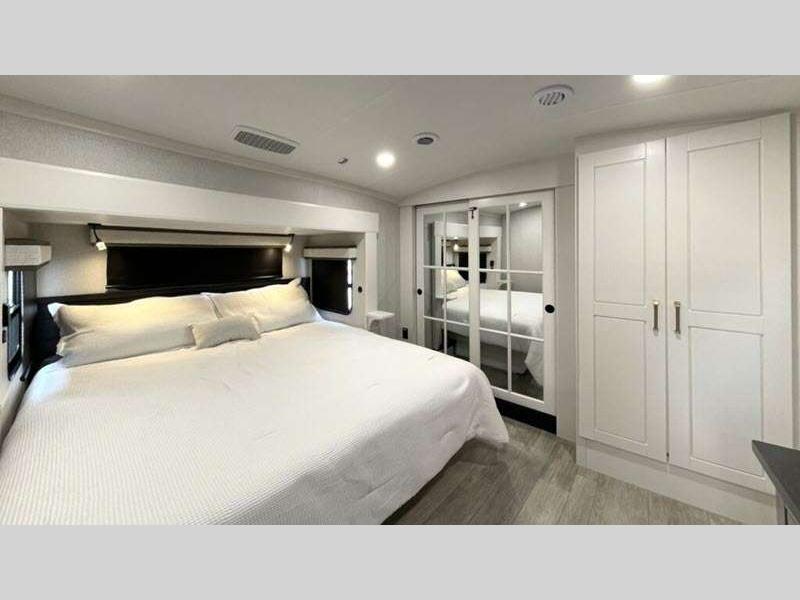

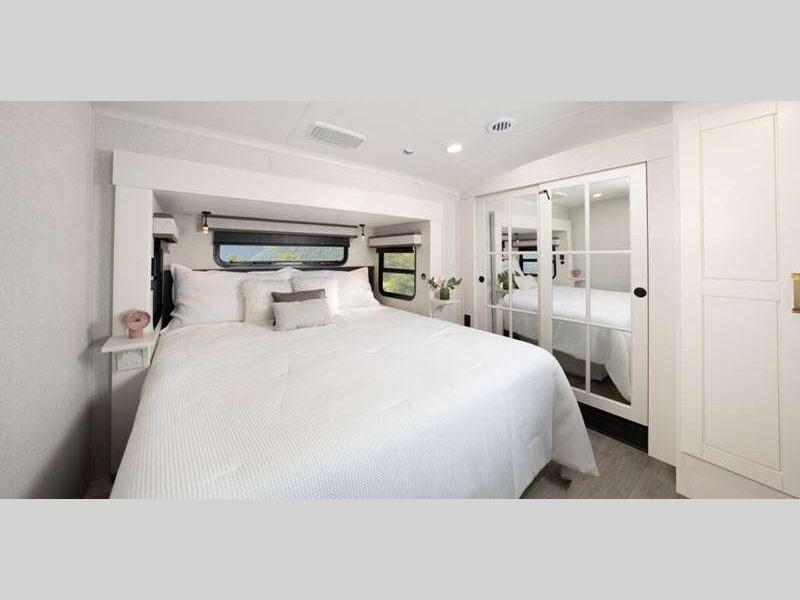

Bedroom
  • Built-In closet system featuring hanging clothes rods, recessed shelving
  • King size bed (N/A 3160 EL)
  • Memory foam pillow top mattress
  • Two windows in slide for better air flow (N/A in 3585RL, 3750FL)
  • Tall dresser with four large drawers
  • 6´4" bedroom ceiling height throughout
  • Level floor between bath and bedroom
  • LED reading lights over bed
  • Storage shelves in bed slide room
  • Deluxe headboard design
  • Pillow package and comforter
  • Massive under bed storage
  • Pull-out storage drawer in steps
  • 32" deep bedroom electric slide rooms (most models)
Wall Construction
  • Laminated fiberglass sidewalls
  • Double-welded aircraft quality aluminum superstructure cage construction
  • Drip rail with down spouts
  • Deluxe power exterior awning
Standard Window Features
  • Frameless dark tinted safety glass windows with UV inhibitor
  • Huge panoramic rear bay window
  • Huge panoramic windows in dinette
  • Ventilation slider side windows
Laminated Roof Construction
  • Welded aluminum frame
  • Walkable roof decking (3/16”)
  • One-piece seamless EPDM rubber roof
  • Radius metal roof cap
Laminated Floor Construction
  • Strong aluminum framing
  • Block foam insulation
  • 3/8" seamless decking
  • Thermo-board luan on the bottom
  • R-14 laminated upper deck floor
Frame & Landing Gear
  • Strong 12" I-beam frame with rust prohibitive coating (10" on smaller models)
  • Hydraulic landing gear jacks (no snap pins required)
  • Heavy duty electric rear stabilizer jacks (N/A with six point auto leveling      system)
Tires & Axles
  • Correct Track alignment system
  • Heavy-duty G-rated 16" tires
  • Aluminum rims
  • Spare tire
  • E-Z Flex™ suspension system by Dexter with quad shocks - for the            smoothest ride around
  • 7,000 lb. Dexter axles with Easy-Lube™ hubs (all models)
  • 2" x 12" Nev-R-Adjust brakes by Dexter
  • Monogrammed ABS fender skirts
Underbelly
  • Seamless corrugated underbelly material
  • Heated and enclosed underbelly
  • Heated and Insulated holding tanks & gate valves
  • Flexfoil insulation (R-14)
Plumbing
  • Color-coded Plumb-PLEX™ water lines with 10/25 year warranty
  • Quick and easy winterization system
Tank Size & LP Gas System
  • 67 gallons - fresh water capacity
  • 135 gallons waste water - 90 gal. grey / 45 gal. black
  • (2) 30# LP bottles with auto change over (room for (2) 40# LP bottle option)
Power
  • 80 Amp/12V DC power converter
  • 50 Amp detachable marine cord
  • Dual battery box (1 battery included)
  • 110V exterior electrical receptacles
  • Battery disconnect
Heating & Cooling
  • Seamless one piece below floor heat duct
  • 42,000 BTU furnace
  • Whisper Quiet A/C system - includes dual high output 15,000 BTU A/C units
  • Insulated in-roof A/C duct system for maximum efficiency
  • Air conditioned stool room
Total Insulation Values
  • Walls - R11 *All formaldehyde-free insulation
  • Roof – R34
  • Slide room floors - radiant insulation R38 equivalent
  • Main floor - R38 • upper deck floor - R14
Main Slide Room
  • 6´5" ceiling height (7'2" on some models)
  • Hydraulic operating system
  • Selector valves for slide rooms
  • Double squeegee seals with one-piece
  • Weather-proof floor pan
  • 12V LED lights
  • Cabinets above sofa
  • Hydraulic manual override system
Entertainment & Connections
  • Computer desk station (most models)
  • Decorative glass door inserts
  • 46" or 55" LED high definition TV (Depends on model)
  • Pre-wired for Winegard Trav’ler satellite system
  • Residential style receiver with built-in DVD Player, FM radio and Bluetooth
Interior Standards
  • All-in-one master control panel with DSI water heater switch, tank level       monitors, slide switches and light switches
  • “Welcome back light”
  • MCD day/night roller shades
  • Metal entry handle
  • Custom slide out fascia

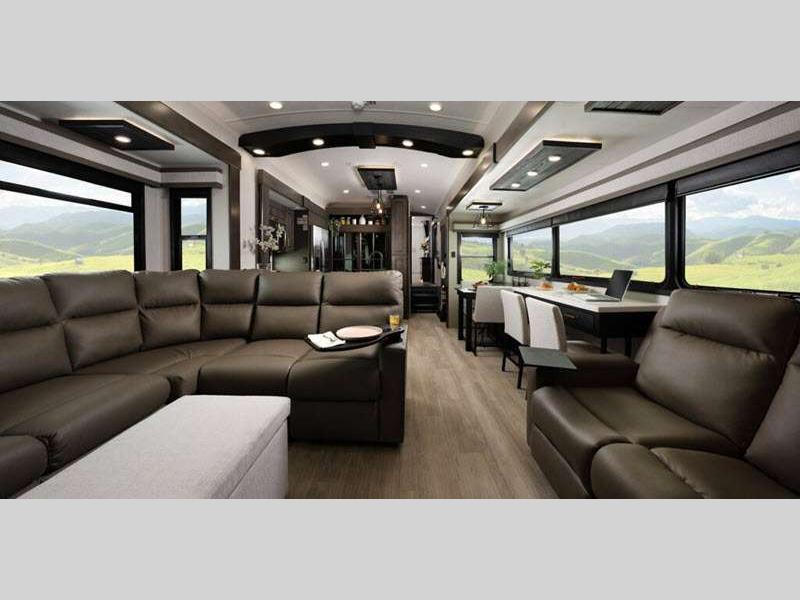

Living Room
  • Residential swivel glider recliners with power massage
  • Upgrade flip & fold sleeper sofa
  • 110V ceiling fan with light kit (N/A 3160, 3260)
Appliances and Lighting
  • 18 Cu.Ft stainless steel refrigerator
  • 3-burner cook top w/oven
  • 30" microwave oven over the range
  • Boutique pull out sprayer faucet in kitchen
  • 12 gal. water heater (gas/electric DSI)

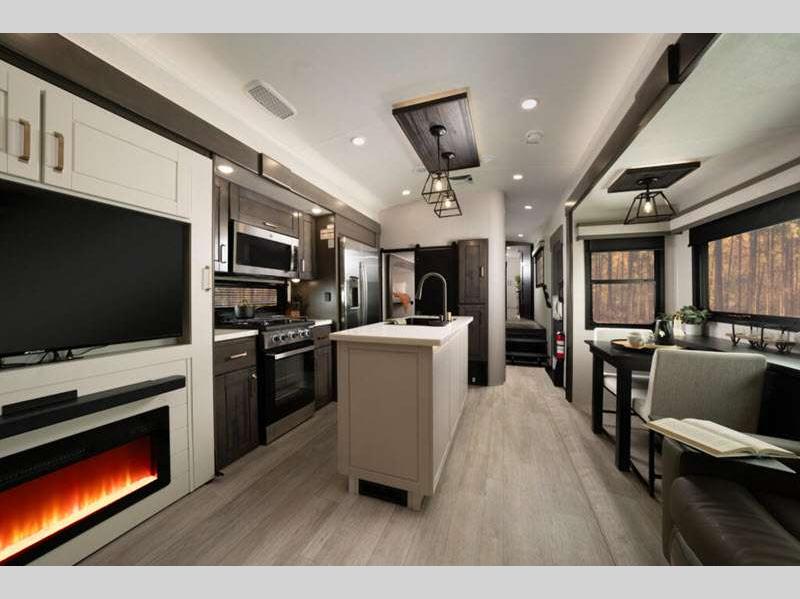

Kitchen
  • Recessed LED lighting
  • Real solid surface countertops with pencil nose edge
  • Residential resilient flooring
  • 24" deep residential sized cabinets
  • Toe kicks (most models)
  • Residential size, stainless steel kitchen sink with matching solid surface sink covers
  • 20" deep residential size drawers
  • Custom crafted dinette table and two chairs with built-in storage
  • Large, deep pantry
  • Three speed, temperature control
  • Fan with rain sensor

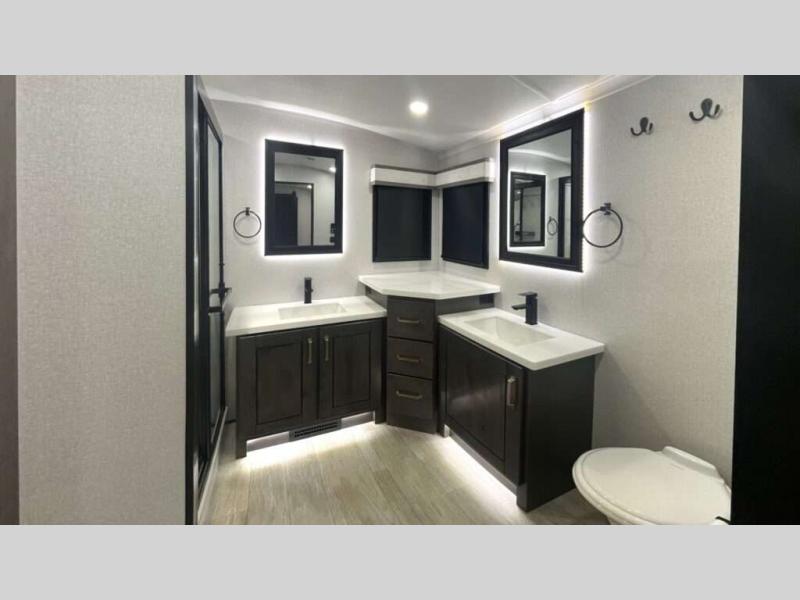

Bath Area
  • 6´4" bath/bed ceiling height throughout
  • Residential resilient flooring
  • Solid surface counter-top with under mount sink and matching sink cover
  • Large mirrored medicine cabinet
  • Linen base cabinet storage
Shower
  • 1-piece fiberglass mini mega shower (most models)
  • Elegant glass shower surround
  • Domed skylight over shower
Commode Room
  • Power roof ventilation
  • Dual 12V LED lights with soft lighting lenses
  • Porcelain commode w/foot flush
Options Exterior
  • Ivory high gloss sidewalls with painted caps
  • Full body paint
  • Six point “Level Up” auto leveling system
  • Mor/Ryde hitch
  • Slide-topper awnings
  • Dual pane frameless windows
  • Generator prep
  • 5.5 Onan generator (ask dealer)
  • Electric power cord reel with 33´ cord
  • Heat pump options (ask dealer for details)
  • Yeti extreme weather package
  • 11/4" Accessory receiver
  • Outdoor entertainment (includes 32" TV, stereo combo and power awning on slide room)

Interior

  • Electric fireplace (forced option on 3010RE, 3750FL, 3970RD)
  • Convection oven
  • 32" bedroom TV
  • Large (2x2) four door refrigerator
  • Three speed, temperature control
  • Fan in bedroom or bathroom with rain sensor
  • Queen bed IPO king bed (Queen std on 3160EL)
  • Programmable safe
  • Power Theater seating (N/A 3010RE) (3750FL standard)
  • Deluxe coffered ceiling (N/A 3750FL)
  • 22 cu.ft. refrigerator with stainless steel appliances



See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

Heartland Recreational Vehicles LLC, Elkhart, Ind., was founded in 2003 by a quintet of RV veterans. Their philosophy is lower numbers mean a better market and better dealers. That was one of the reasons why all of them left their previous companies to bring Heartland RV to the public.

The first product created by Heartland was a high-end fifth wheel. The LANDMARK which was aimed at extended-stay RVers who spend a lot of time in their coaches at one location was picked to create first on purpose because it was going to be the hardest to build and they wanted to prove that they could do it and do it right.

Because of the success with the Landmark they were able to introduce the BIGHORN in 2004. From this debut, Heartland doubled its dealer base, and added three new coaches in 2005, the CYCLONE toy hauler, SUNDANCE mid-profile fifth wheel, and the entry level line callled the TRAIL RUNNER.

In 2006, Heartland broke ground on a new 110,000 sq. ft. production facility with a new corporate office structure attached.  By the spring of 2006, Heartland had moved into the Top Ten 5th wheel manufacturers, and by the end of the year were solidly #8 with their eyes toward the #5 spot.  Heartland was again poised for growth and launched the BIG COUNTRY 5th wheel and RAZOR toy hauler.

In the spring of 2007, Heartland introduced the NORTH TRAIL line of laminated construction light weight travel trailers and 5th wheels. Continued growth continued and in 2008 another expansion in a new 80,000 sq. ft. facility to produce NORTH COUNTRY wood constructed aluminum sided travel trailers.  The North Country builds on Heartlands tradition of doing it better and doing things right.  In just a few short years Heartland is now #3 in 5th wheels and closing in fast on being among the top 5 towable manufacturers of 5th wheels and travel trailers combined.

Their goal is not to be a high volume company. Heartland aims to create demand from their dealers and for their dealers, and keep innovations going. With notable technological accomplishments like the Patented improved 88 degree turning radius for extended-cab or short-bed pickup trucks and the development of a universal docking center they have proven year after year that they are well on their way to doing exactly what they set out to do!
