Newmar Bay Star Sport Motor Home Class A

Previous
Next
1 of 22
View Floorplans Request Info
Factory Brochure Print Page
The beauty of the open road is truly something special especially from the Bay Star Sport by Newmar. Each motor home is built on a Ford F-53 chassis, and engineered for durability and designed to accommodate each and every adventure in comfort and style.

Each model features a spacious master bedroom with a large rear window on select floor plans. In the master bathroom you will find plenty of at home touches such as a solid surface wood vanity, and a spacious shower. Go ahead and make yourself at home with the Flexsteel Deluxe leather furniture. You will also find plenty of storage throughout each model, so it will be easy to pack for your next trip. Choose a Bay Star Sport to start your next adventure!

  • Bay Star Sport 2702

    Bay Star Sport 2702 Floorplan Image

    Newmar Bay Star Sport class A motor home 2702 highlights: Double Slide Outs ... more about Bay Star Sport 2702

    Featured 2702

    Specifications

    Sleeps 5
    Slides 2
    Length 27 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 18000 lbs
    Dry Weight 15190 lbs
    Cargo Weight 2852 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 KW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 172 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 34" x 34" in
    Axle Weight Front 7000 lbs
    Axle Weight Rear 12000 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    TV Info Cab TV, Opt. BR 32" LED TV
    Gross Combined Weight 23000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Rear Bedroom

  • Bay Star Sport 2813

    Bay Star Sport 2813 Floorplan Image

    Newmar Bay Star Sport class A motor home 2813 highlights: Double Slide Outs ... more about Bay Star Sport 2813

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 28 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 20500 lbs
    Dry Weight 16800 lbs
    Cargo Weight 3700 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 KW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 38" x 26" in
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    TV Info LR LED TV, Opt. BR 32" LED TV
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Rear Bedroom

  • Bay Star Sport 2903

    Bay Star Sport 2903 Floorplan Image

    With this 2903 Bay Star Sport motor home by Newmar, you will find a full wall ... more about Bay Star Sport 2903

    Featured 2903

    Specifications

    Sleeps 4
    Slides 2
    Length 29 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 20500 lbs
    Dry Weight 16395 lbs
    Cargo Weight 4105 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 190 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 36" x 36" in
    Number of Awnings 1
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    AC BTU 13500 btu
    TV Info Cab TV
    Awning Info Power
    Gross Combined Weight 26000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Rear Bedroom

  • Bay Star Sport 3008

    Bay Star Sport 3008 Floorplan Image

    Newmar Bay Star Sport class A motor home 3008 highlights: Full Wall Slide Out ... more about Bay Star Sport 3008

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 30 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 20500 lbs
    Dry Weight 17150 lbs
    Cargo Weight 3350 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 KW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 200 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 36" x 36" in
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    TV Info Cab TV
    Gross Combined Weight 26000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

    Rear Bedroom

  • Bay Star Sport 3014

    Bay Star Sport 3014 Floorplan Image

    Newmar Bay Star Sport class A motor home 3014 highlights: Full Wall Slide Out ... more about Bay Star Sport 3014

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 30 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 20500 lbs
    Dry Weight 17300 lbs
    Cargo Weight 3200 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 35000 btu
    Generator 4.0 KW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 200 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 40" x 30" in
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    TV Info LR TV, Opt. BR TV
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

    Rear Bedroom

  • Bay Star Sport 3226

    Bay Star Sport 3226 Floorplan Image

    Newmar Bay Star Sport class A motor home 3226 highlights: Triple Slide Outs King ... more about Bay Star Sport 3226

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 32 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 20500 lbs
    Dry Weight 17700 lbs
    Cargo Weight 2800 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 208 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 40" x 30" in
    Number of Awnings 1
    Axle Weight Front 7500 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    TV Info LR TV, Opt. BR 32" LED TV
    Awning Info Power
    Gross Combined Weight 26000 lbs
    Shower Type Standard
    Electrical Service 30 amp

  • Bay Star Sport 3307

    Bay Star Sport 3307 Floorplan Image

    Newmar Bay Star Sport class A motor home 3307 highlights: Full Wall Slide Out ... more about Bay Star Sport 3307

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 2
    Length 33 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 12 ft 4 in
    Int Height 6 ft 8 in
    Interior Color Mustang, Palomino
    Exterior Color Mustang, Palomino
    Hitch Weight 5000 lbs
    Gross Weight 22000 lbs
    Dry Weight 17900 lbs
    Cargo Weight 4100 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 40 gals
    Furnace BTU 30000 btu
    Generator 4.0 kW Cummins Onan
    Fuel Type Gas
    Engine Triton V10
    Chassis Ford F-53
    Horsepower 320 hp
    Fuel Capacity 80 gals
    Wheelbase 216 in
    Available Beds Queen
    Torque 457 ft-lb
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Shower Size 36" x 36" in
    Number of Awnings 1
    Axle Weight Front 8000 lbs
    Axle Weight Rear 15000 lbs
    LP Tank Capacity 25 lbs.
    Water Heater Capacity 6 gal.
    Water Heater Type DSI Gas
    TV Info LR TV, Opt. BR 32" LED TV
    Awning Info Power
    Gross Combined Weight 26000 lbs
    Shower Type Radius
    Electrical Service 30 amp

Bay Star Sport Features:

Standard Features (2019)

Exterior
  • Exterior Masterpiece Full Painted Graphics with Clearcoat Finish
  • Dura Shield Protection on Front Cap

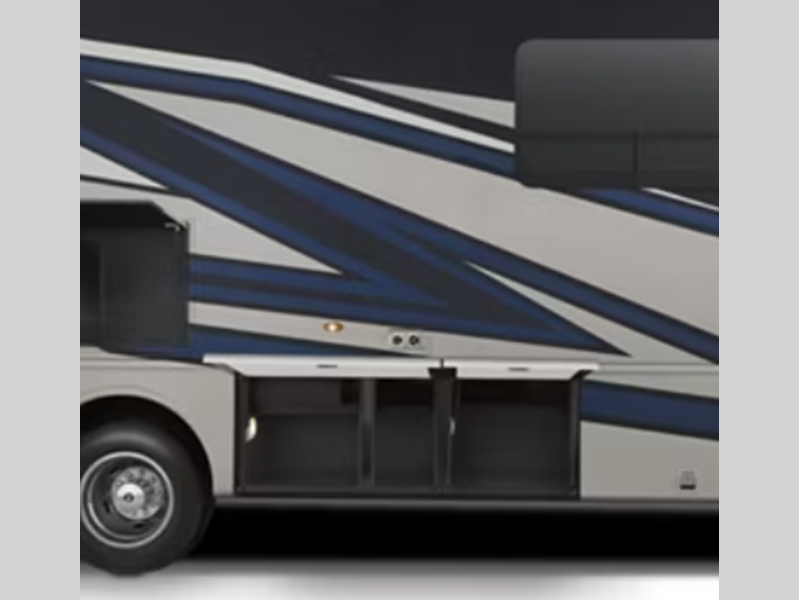

  • Lighted Exterior Storage Compartments
  • Automatic Step for Entrance Door
  • Convex Exterior Mirrors
  • Rear Hitch for Towing Car
  • Assist Handle at Entrance Door
  • Undercoating
  • Mud Flaps

Options

  • Convex Exterior Mirrors with Defrost and Remote Control
  • Hydraulic Leveling Jacks
  • Rear Ladder
  • Flag Pole Bracket
  • Temporary Windshield Protection for Transport Only
Construction
  • BriteTEK Roof with Walkable Deck
  • Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
  • Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
  • 5/8" Foam Insulation Laminated in Sidewalls & Ceiling

Chassis

  • Ford F-53 Chassis 18,000 lb. on 27' Floor Plans
  • Ford F-53 Chassis 20,500 lb. on 28'-33' Floor Plans
  • Cruise Control
  • Tilt Steering Wheel
  • Stainless Steel Wheel Simulators

Windows, Awnings & Vents

  • One Piece Tinted Windshield
  • Frameless Single Pane Tinted Safety-Glass Windows
  • Power Vent in Bathroom
  • Skylight Above Shower
  • Carefree Travel'r Side Awning
  • Egress Door with Ladder System

Options

  • Slideout Covers
  • Frameless Double-Pane Tinted Safety Glass Windows
  • Rear Window in Bedroom
  • Power Vent in Kitchen

Air Conditioning, Heating & Electrical

  • 4.0 kW Cummins Onan® Generator with Remote Switch and Automatic Changeover
  • 30 Amp Electrical Service with Flexible Cord and Automatic Transfer Switch
  • Two 12 Volt House Batteries
  • Manual Battery Disconnect Switch for House Battery
  • 12 Volt Auxiliary Receptacle on Dashboard
  • 45 Amp Converter
  • Daytime Running Lights
  • Emergency Engine Start Switch
  • LED Interior Lighting
  • Manually Operated Hold-To-Run Slideout Switch
  • Cable TV Connection
  • USB Outlet at Dash for Driver Use

Options

  • 1000 Watt Inverter Ran to TVs*

Plumbing & Bath

  • Demand Water System
  • Sewage Holding-Tank Rinse
  • Water Heater Bypass System
  • Dometic® 310 China Bowl Stool
  • ABS Shower Surround with Shower Door
  • Systems Monitor Panel
Cabinets & Furniture
  • Calypso Glazed Maple Mitered Designer Cabinet Doors- Matte Finish
  • Concealed Hinges on Cabinet Doors
  • Drawers with Full Extension Guides
  • Polished Solid Surface Countertop in Kitchen with Stainless Steel Sink
  • Solid Surface Countertops in Bathroom and Bedroom
  • Flexsteel® Delux Leather Sofa and Front Seats
  • Passenger Seat Work Station
  • Lifts on Bed Top
  • Smooth-Top Mattress

Optional

  • Astoria Glazed Maple Mitered Designer Cabinets-Opt. Matte Finish
  • Sienna Glazed Maple Mitered Designer Cabinets-Opt. Matte Finish
  • Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Release Latches*
  • Plush Pillow Top Mattress
  • Folding Cockpit Table
  • Side Folding Hide-A-Bed Sofa 87"*
  • 74" Fold-N-Tumble with Air Mattress
  • 84" Jackknife Sofa in Place of 84” Jackknife L-Sofa*
  • 87" Bunk Sofa*
  • Buffet Dinette
  • Combo Buffet Dinette, Two Fixed/Two Folding Chairs
  • 68" Jackknife Sofa with Removable Table 2812 Only

Appliances

  • Three-Burner Range with Oven
  • Range Hood with Light and Fan
  • Microwave
  • Dometic® 6 Cf. Refrigerator with Wood Paneling Front
  • 6 gal. Gas Water Heater with Direct Spark Ignition
  • Norcold 12 Cf. 4-Door Refrigerator with Icemaker*

Interior

  • Vinyl Ceiling Panels
  • Pleated Window Shades
  • Decorative Wall Art
  • Mini Blinds in Kitchen and Bathroom Windows
  • Vinyl Floor in Kitchen, Living Area and Bathroom
  • Carpeting in Bedroom and on Slideout floors
  • Interior Assist Handle at Main Entrance Door
  • Quilted Bedspread and Accent Pillow
  • Inlayed Six Panel Design Interior Passenger Doors
  • Auto Motion Power Shade at Windshield & Manual Shades at Driver & Passenger Side Windows
  • Dash Panel Color Coordinated ABS
  • 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
Audio, Video & Accessories
  • LED TV in Living Area (TV sizes vary per floorplan)
  • Dash Radio/CD Player with Harman/JBL 180 Watt Sound System
  • Rearview Colored Monitor System with Audio
  • Winegard Digital TV Antenna
  • TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
  • Satellite Dish Prep on Roof

Options

  • 32" LED TV in Bedroom
  • DVD Player with Coax Switcher
  • Side View Cameras Displayed onto Rear View Monitor Screen
  • Wifi Ranger Sky3 Pack Router
  • Winegard Cellular In Motion Wifi
  • Xite Dash Radio, 6" Monitor with Rand McNally Navigation
  • Winegard Cellular in Motion WiFi Prep



*Check with dealership regarding floorplan availability and a complete listing of features.



See us for a complete list of features and available options.

All features and specifications are subject to change.

Manu-Facts:

Newmar is a company built around the Christian faith, specifically the beginning of the Mennonite faith in 1525 under the guidance of Ulrich Zwingli, and the founding of the Amish fellowship under Jacob Amman in 1693.



At Newmar, we believe that a motor coach is more than just a vehicle, it’s a passport to countless hours of fun and a lifelong memories taken from quality time spent with family and friends.



For over 50 years, we’ve applied our principles to the creation of motor coaches that have allowed people all over the world to live the RV lifestyle. And we’ll continue to so for countless generations to come. It’s why we take pride in every rivet, weld, and mechanical function.
